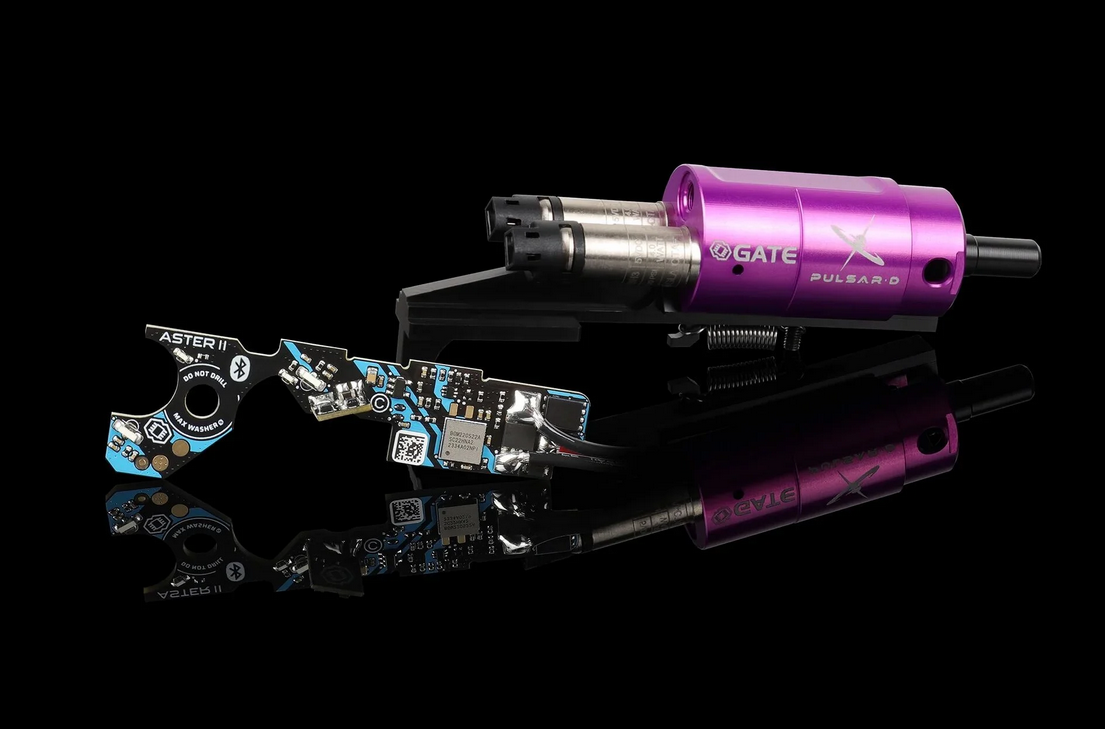

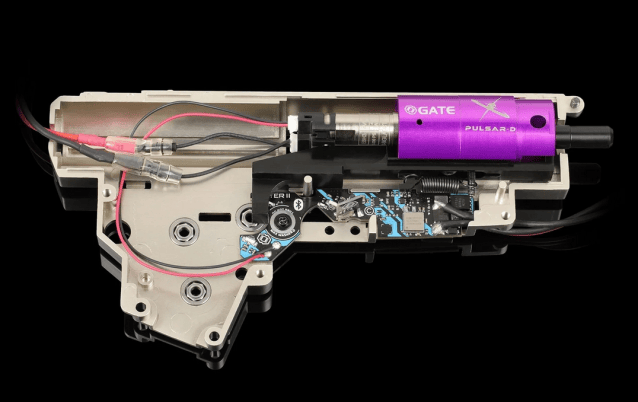

Gate PULSAR D kit for V3 - PULSAR D + ASTER II Bluetooth for V3 + Tappet Plate V3

The GATE PULSAR D Kit for V3 is a complete, performance-focused HPA conversion bundle for Version 3 gearboxes, combining the PULSAR D HPA engine, ASTER II Bluetooth for V3, and a V3 tappet plate to give you a streamlined upgrade path with matched components. It's built for players who want the core advantages of HPA - high consistency, fast response, and easy tuning to site limits - while keeping the advanced electronic control and adjustability GATE is known for.

Ideal for competitive speedsoft, CQB, and outdoor skirmishes alike, this kit is a strong choice for builders who want a reliable V3-based HPA setup without piecing parts together separately. Once installed and tuned with the right air system (tank/reg/line), you'll get repeatable shot performance and a trigger feel that can be dialled in to suit your playstyle.

Specifications (known)

• Brand: GATE
• Kit type: HPA conversion kit
• Gearbox compatibility: V3
• Includes: PULSAR D HPA engine + ASTER II Bluetooth (V3) + V3 tappet plate

Why it's a great buy

• Matched V3 components for a cleaner, more straightforward build
• HPA consistency and responsiveness for competitive performance
• ASTER II Bluetooth adds advanced control, tuning and diagnostics
• Great foundation for a high-end V3 HPA rifle build

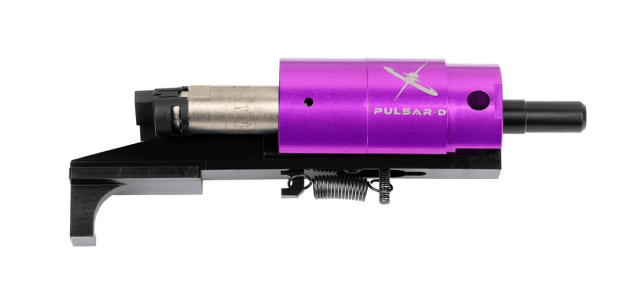

Pulsar D is unrivaled thanks to the following combination:

• Simple design
• New automatic synchronization of the nozzle movement cycle enables easier calibration - no need to fire thousands of rounds to achieve good FPS results and stable BB trajectories
• Due to its new BB feed system and closed-bolt mode, it is definitely less sensitive to replica and assembly quality
• Razor-sharp accuracy of the system - no unstable hop-up system symptom like in other HPA systems
• Smooth integration & compatibility with the most advanced optical ETU/FCU ASTER II Bluetooth® for a synergy effect
• High tolerances eliminating the mid-cap syndrome
• Compatibility with any AEG nozzles
• Zero nozzle wobble resulting in stable FPS when paired with GATE AEG nozzles, which translates into stable FPS and no mid-cap syndrome
• No FPS drops on AUTO relative to SEMI mode at high RPS - up to 40 RPS with no FPS drops

PULSAR D FEATURES

SIMPLE - Easy maintenance, thanks to a well thought-out design VALUE FOR MONEY - State-of-the-art technology at the best price COMPACT - Smallest dual solenoid valve closed-bolt HPA engine with new cycle synchronization Bluetooth® ETU/FCU CONTROLLED - ASTER II Bluetooth® V3 gearbox drop-in ETU FCU mosfet AEG HPA - the best Bluetooth optical unit in an HPA replica

• Very high resolution trigger ‎sensor - up to 50 points of sensitivity in the first millimeter
• Bluetooth® 5.2 - connectivity to other elements of the GATE ecosystem, e.g. STATUS, smartwatch
• For the first time in HPA replicas configurable fire modes such as BINARY TRIGGER, BURST, etc.
• Convenient GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS
• Constant access to software updates

AEG COMPATIBILITY - Compatible with AEG nozzles - 5 nozzle lengths included for MP5, M4/M16:

• 20.30mm
• 21.00mm
• 21.15mm
• 21.25mm
• 21.40mm

NO MID-CAP SYNDROME - Eliminated mid-cap syndrome thanks to high dimensional tolerance ACCURACY - High accuracy due to the new BB feed system for HPA engines STABILITY - FPS stability in full AUTO mode

SPECIFICATIONS

The design and production of the device is based on harmonized standards.

Solenoid Voltage Range 5-8.4 V Operating Pressure 60-140 PSI - high pressure only Gas Consumption For 90 PSI and a 48 ci/0.8 l 300 bar/4500 PSI bottle - 0.7 PSI per shot Dimensions with new cycle synchronization automation (Length x Diameter x Height) 102 mm x 25.4 mm x 38.5 mm Dimensions (Length x Diameter x Height) 100 mm x 25.4 mm x 32 mm Finished Product Weight 90 g Operating Temperature Range min. -15° C, max. +50° C Relative Humidity ≤ 80% Regulated ROF 1 to 40 RPS (BB feed correctness depends on magazine) Velocity 250 - 650 FPS Operation Mode Closed-Bolt / Open-Bolt Pressure Range 60 do 140 PSI

ASTER II Bluetooth® for V3

Supply Voltage Range [AEG application] 3.75 - 12.9 V Supply Voltage Range [HPA application] 5 - 8.6 V Rated Current 30 A Current Consumption 20 mA Low Power Mode 130 µA Dimensions (Length x Width x Height) 73.5 mm x 24 mm x 12.5 mm Finished Product Weight 26 g Operating Temperature Range min. -15°C max. + 50°C Relative Humidity ≤ 80%
