Gate PULSAR D HPA Engine with TITAN II Bluetooth® - Front Wired
Not in stock - we order this in for you. Estimated dispatch in 3 days.

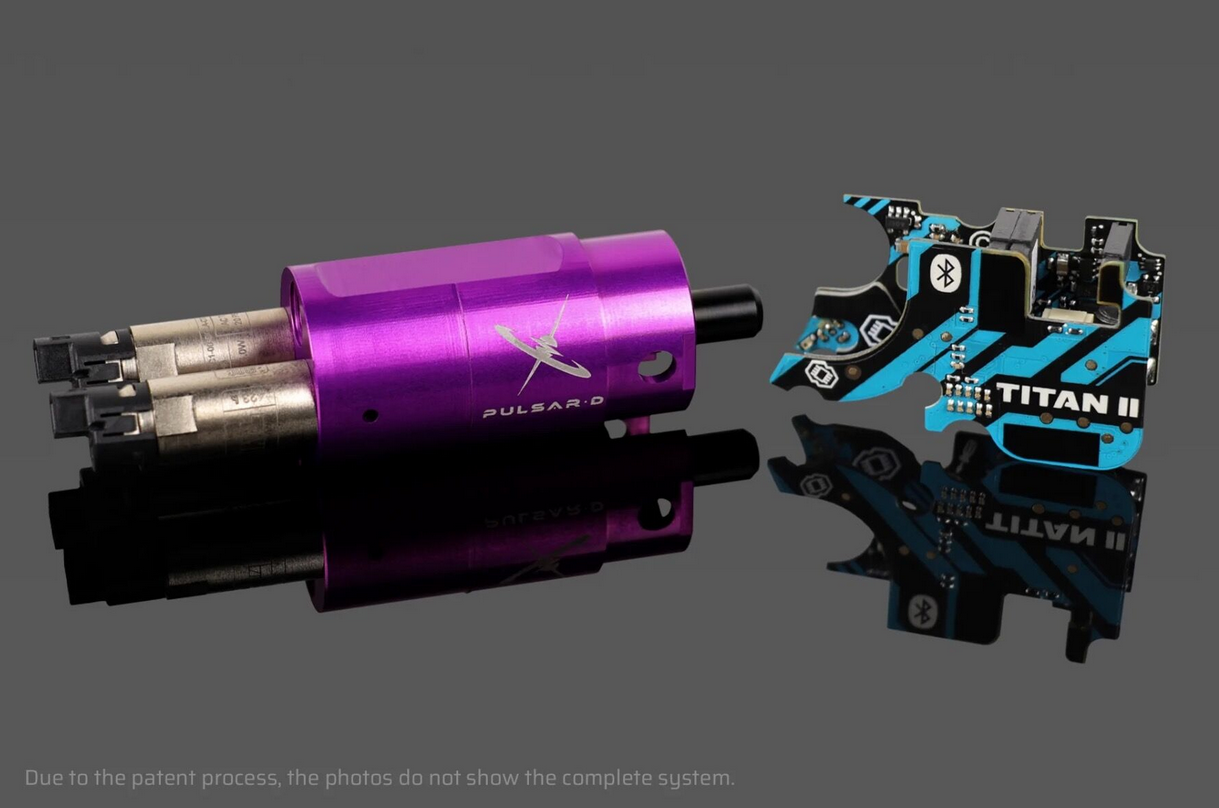

The GATE PULSAR D HPA Engine with TITAN II Bluetooth® (Front wired) is a high-end HPA conversion engine built for players who want maximum consistency, fast response, and deep electronic control in a compact, reliable package. Pairing the PULSAR D engine with the GATE TITAN II Bluetooth® gives you advanced programmability and tuning potential for competitive speedsoft, CQB, and outdoor skirmishes - ideal for anyone chasing repeatable performance and a perfectly dialled trigger feel.
With a front wired setup, this version is suited to builds where you want wiring routed toward the front handguard or anywhere forward or the grip, helping keep your installation clean depending on your rifle configuration. Once tuned to your site limits, the PULSAR D delivers the key HPA advantages: stable shot-to-shot output, excellent air efficiency potential, and performance that stays consistent across long game days.
Specifications (known)
- Brand: GATE
- Engine: PULSAR D HPA Engine
- Control unit: GATE TITAN II Bluetooth®
- Wiring: Rear wired
- System type: HPA engine (AEG-to-HPA conversion)
Why it's a great buy
- HPA consistency for stable performance and repeatable shots
- TITAN II Bluetooth® for advanced tuning, control and diagnostics
- Rear-wired layout suits stock/buffer tube routing
- Ideal for competitive builds where trigger response matters
PULSAR D FEATURES
SIMPLE - Easy maintenance, thanks to a well thought-out design VALUE FOR MONEY - State-of-the-art technology at the best price COMPACT - Smallest dual solenoid valve closed-bolt HPA engine with new cycle synchronization Bluetooth® ETU/FCU CONTROLLED - TITAN II Bluetooth® V2 gearbox drop-in ETU FCU mosfet AEG HPA - the first Bluetooth optical unit in an HPA replica- Very high resolution trigger sensor - up to 50 points of sensitivity in the first millimeter
- Bluetooth® 5.2 - connectivity to other elements of the GATE ecosystem, e.g. STATUS, smartwatch
- For the first time in HPA replicas configurable fire modes such as BINARY TRIGGER, BURST, etc.
- Convenient GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS
- Constant access to software updates
- 20.50mm
- 20.80mm
- 21.15mm
- 21.25mm
- 21.40mm

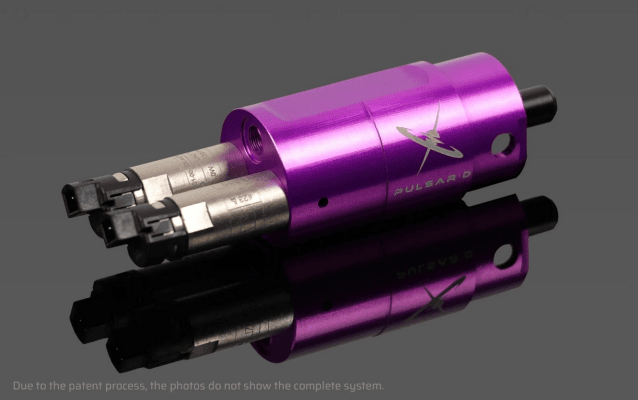

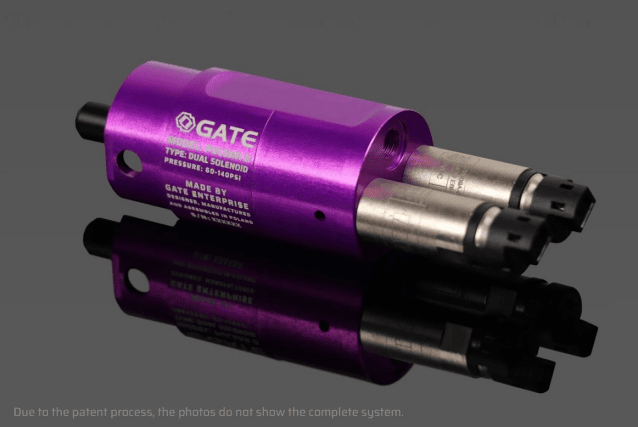

PULSAR D - DUAL HPA SOLENOID ENGINE
The design and production of the device is based on harmonized standards. Solenoid Voltage Range 5-8.4 V Operating Pressure 60-140 PSI - high pressure only Gas Consumption For 90 PSI and a 48 ci/0.8 l 300 bar/4500 PSI bottle - 0.7 PSI per shot Dimensions with new cycle synchronization automation (Length x Diameter x Height) 102 mm x 25.4 mm x 38.5 mm Dimensions (Length x Diameter x Height) 100 mm x 25.4 mm x 32 mm Finished Product Weight 90 g Operating Temperature Range min. -15° C, max. +50° C Relative Humidity ≤ 80% Regulated ROF 1 to 40 RPS (BB feed correctness depends on magazine) Velocity 250 - 650 FPS Operation Mode Closed-Bolt / Open-Bolt Pressure Range 60 do 140 PSITITAN II Bluetooth®
Supply Voltage Range 5-8.6 VDC Rated Current 10 A Current Consumption 27 mA Low Power Mode 100 µA Connectivity Bluetooth® 5.2 Low Energy Dimensions (Length x Width x Thickness) 47.2 mm x 28.9 mm x 14.5 mm Finished Product Weight 28.2 g Operating Temperature Range min. -15° C, max. +50° C Relative Humidity ≤ 80%GCS APP
PULSAR D with TITAN II Bluetooth® and GCS App gives you total control of your replica.GCS offers you the option to:
• Control your airsoft gun from a smartphone with Android, iOS and PC with Windows or macOS
• Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win
Features
- • No more surprises with an empty magazine or a discharged battery
- • Easily adjust the ASTER settings during the game
- • Update and upgrade firmware
- • View the BB counters, electrical measurements, and statistics
- • Perform diagnostics and send reports
- • Get the latest news from GATE Enterprise
