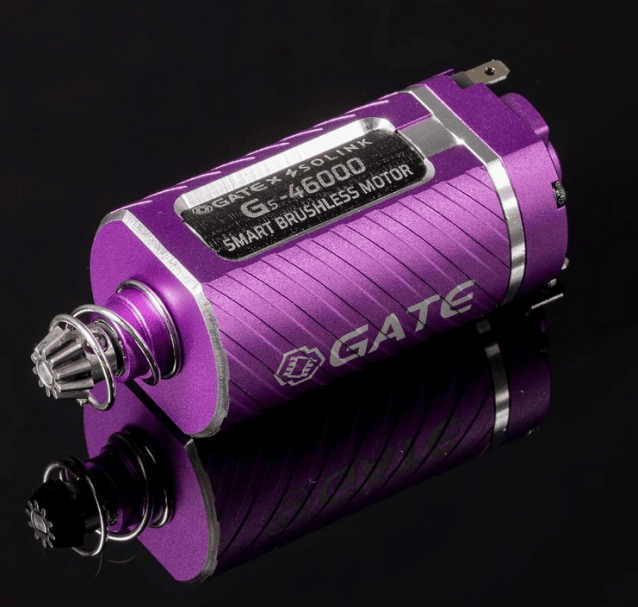

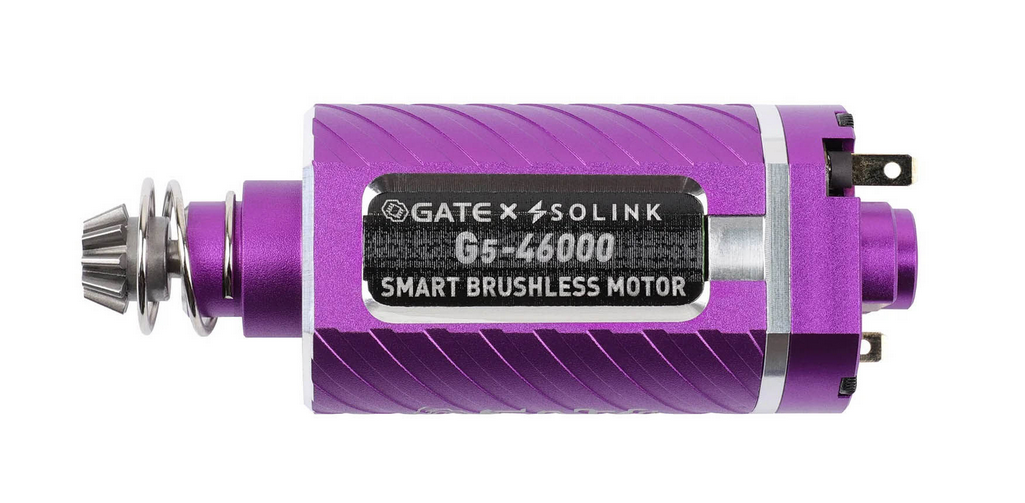

GATE G5 Smart Brushless Motor - Short

The GATE G5 Smart Brushless Motor - Short is a high-performance upgrade motor designed for airsoft players who want faster response, smoother operation, and smarter efficiency than traditional brushed motors. As a brushless unit, it's built for consistent performance under load and is a great choice for skirmishers running upgraded gearsets, stronger springs, or advanced MOSFET setups where reliability and control really matter.

The short motor format makes it suitable for replicas that require a short-type motor (commonly many AK-style and other V3-based platforms - always confirm your grip/motor type before ordering). Whether you're chasing a snappier semi-auto, better efficiency, or a more dependable build for heavy use, the G5 Smart is a premium option for modern AEG setups.

Specifications

• Brand: GATE
• Model: G5 Smart
• Motor type: Brushless
• Size/type: Short

Why it's a great buy

• Brushless design for improved efficiency and durability
• Helps deliver faster trigger response and smoother cycling
• Great match for upgraded AEG builds and advanced electronics
• Ideal for high-use skirmish and performance-focused setups

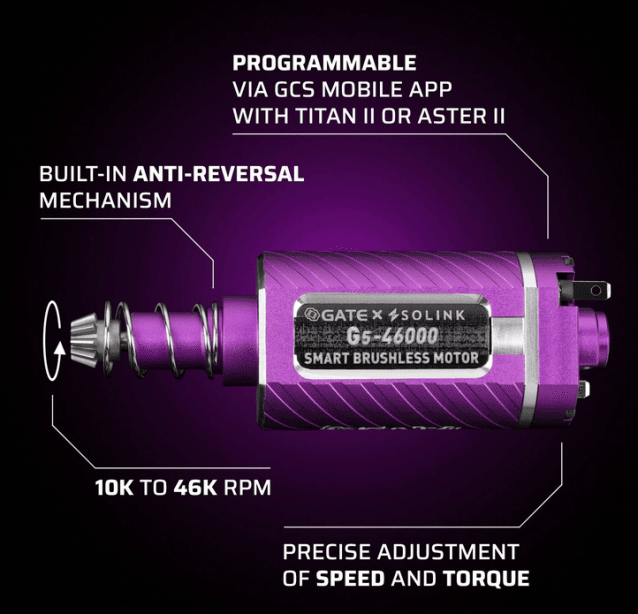

What distinguishes G5 Brushless Motor from the competition?

• The world's first brushless motor programmable via GCS mobile app exclusively with GATE TITAN II or ASTER II Bluetooth®
• Integrated anti-reversal mechanism ensures quieter operation and ultra-precise pre-cocking
• Extremely high torque, reaching up to 2334 g-cm
• Very wide RPM range: 10 000 - 46 000 RPM
• Highly durable motor connectors
• Integrated motor shaft manufactured using CNC technology
• Exceptionally effective braking system
• D-type pinion gear

Specification of GATE G5 Brushless Motor for 11.1V

AT NO LOAD:

SPEED - 45 800 RPM
CURRENT - 3.2A

AT MAXIMUM EFFICIENCY:

• EFFICIENCY - 75.9%
• SPEED - 40 987 RPM
• TORQUE - 500 G/CM
• CURRENT - 24.9 A
• OUTPUT - 205 WATTS

AT MAXIMUM OUTPUT:

• EFFICIENCY - 48.4%
• SPEED - 22 950 RPM
• TORQUE - 2334 G/CM
• CURRENT - 105 A
• OUTPUT - 519 WATTS

Supply Voltage Range

6 - 16.8 V

Dimensions (Length x Width x Height)

88.5 x 29.5 x 25 mm

Finished Product Weight

141 g

GATE G5™ Brushless Motor and ASTER II Bluetooth® / TITAN II Bluetooth® gives you total control of your replica.

• • The GCS app offers you the option to
  • Control your brushless motor speed and torque even during gameplay
  • Control your airsoft replica from a smartphone with Android, iOS and PC with Windows or macOS
  • Easily adjust the ASTER II Bluetooth® / TITAN II Bluetooth® settings during the game
  • Update ASTER and TITAN firmware - apply changes, make improvements, and get bugfixes
  • Perform diagnostics and send reports
  • View the BB counters, electrical measurements, and statistics
  • Get the latest news from GATE Enterprise
  • Acquire real-time data from your smartwatch (with Wear OS or watchOS)
  • Have no more surprises with an empty magazine or a discharged battery
  • get new motor settings in GCS and G5 Smart Brushless Motor is detected automatically
  • Read potential DTC errors in case of issues with motor
